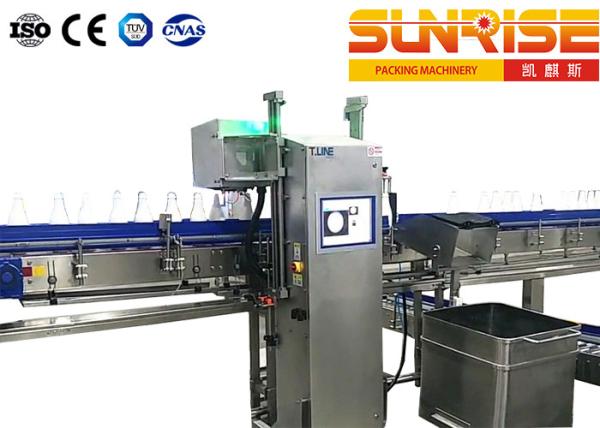

Aluminum film sealing inspector
Equipment introduction:
Aluminum film sealing inspector adopts intelligent visual technology, through high-speed cameras of two detection units HD video on bottle vertical and horizontal direction. The center controller analysis and process images. First, it will take pictures above the bottle, to judge whether it is qualified through aluminum film planeness and integrality. Second, it will take pictures side of the bottle, to judge whether it is leakage through the features of side pictures. So this equipment can ensure the quality of products through the above two detections.
Technical parameters:
|
Power:
|
0.5KW |
| Temperature: |
0ºC-45ºC |
| MAX. speed: |
72000BPH |
| Power source: |
AC220/Single phase |
| Flow of air source: |
>500L/min |
| Air source: |
>0.6Mpa |
| Altitude: |
＜3000 M |
| Air consumption of rejecter: |
≈0.01L/action |
Features:
Non-contact type inspecting
Chinese and English dual language menu
Color human-computer interface
IP65cabinet
Alarm for continuous rejecting
Save 10 kinds of rejecting data
Digital signal treatment
Accurate beat timer encoder
Net remote control (optional)
Fitting brand
1.Industrial air conditioning: Leizig(Australia)
2.CCD Camera: BAUMER(Germany)
3.Camera lens: Computar(Japan)
4.Air cylinder: SMC(Japan)
5.Photoelectricity: Omron (Japan)
6.Signal lamp/breaker: Schneider
7.Electromagnetic valve: MAC (American)
8.Light source controller: V-Light
Detecting function:
Detection function: aluminum film not sealing,slight leakage,bottle body leakage. The machine can automatically and non-contact detect the aluminum film sealing quality online testing and accurately reject the non-qualified products.
Applicable containers:
PE bottles with aluminum film sealing above 1L (need high temperature sterilization).
